C-USP2

public://uploads/c-usp2-44.png

C-USP2

Catalog numbers:

    • D-150 mechanical joint ends with accessories and duck tipped rubber gaskets†
    • D-150 mechanical joint ends with accessories and plain tipped rubber gaskets†
    • D-150 mechanical joint ends with accessories and duck tipped rubber gaskets† and bonding set screws in gland
    • D-150 mechanical joint ends with accessories and plain tipped rubber gaskets† and bonding set screws in gland

Specifications:

  • Sizes-- 4", 6", 8"
  • Meets or exceeds all applicable requirements of ANSI/AWWA C509 Standard and is certified to ANSI/NSF 61 & 372
  • Iron body with nominal 10 mils MUELLER® Pro-Gard™ Fusion Bonded Epoxy Coated interior and exterior surfaces
  • Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard
  • Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
  • Non-rising stem (NRS)
  • Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
  • 2" square wrench nut (optional handwheel available)--open left or open right
  • 4" - 8" sizes--250 psig (1725 kPa/17 barg) maximum working pressure, 500 psig (3450 kPa/35 barg) static test pressure
  • Designed for potable water applications.
† See page 12.26 for extra gaskets and classes of pipe that cut-in valve will fit.

Options:

  • Position indicators
  • Stainless steel stem: type 304 and type 316
  • Low zinc, silicon bronze ASTM B98-C66100/H02 stem
  • Handwheel
  • EPDM disc and O-rings

Submittal Drawing          Full Line Catalog

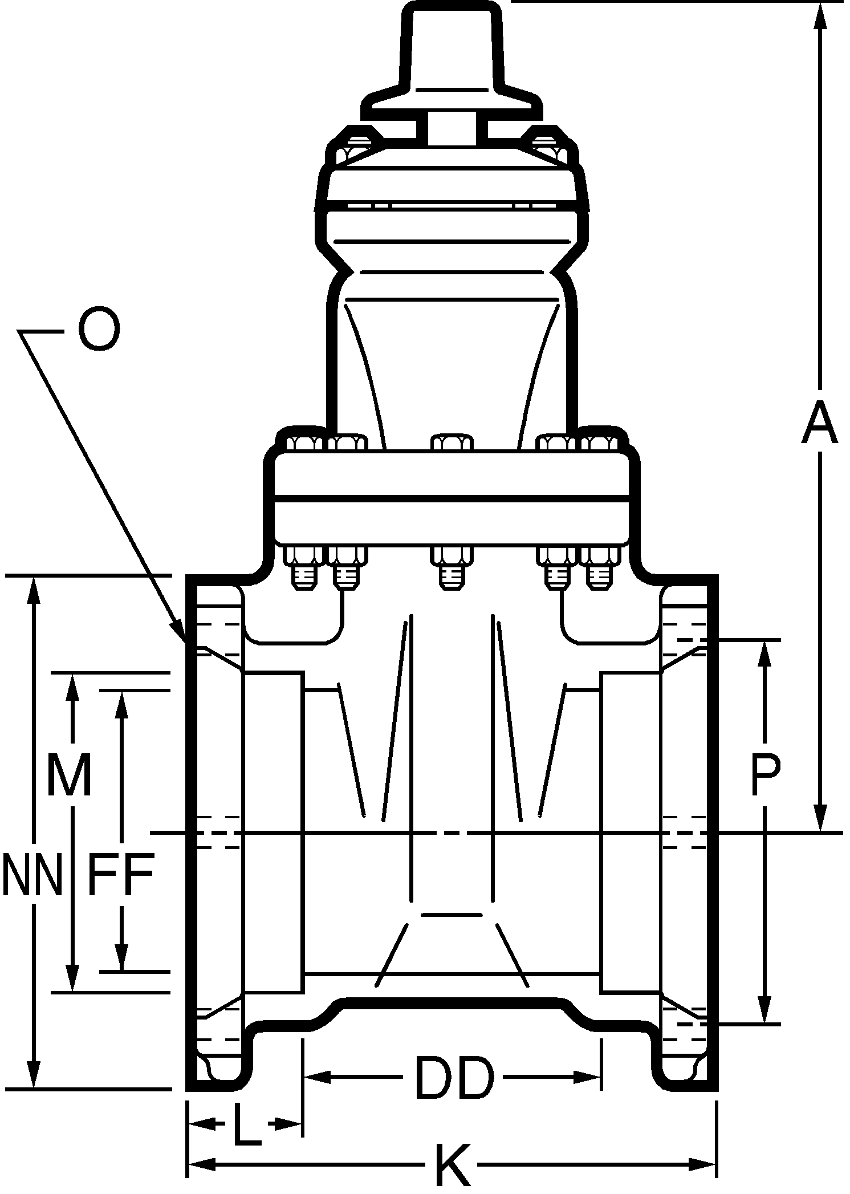

C-2360 Cut-In Valve MJ MJ Dimensions Drawing



Dimensions*

Nominal Size

4"

6"

8"

A

14.19

18.0

21.50

K

10.00

11.50

12.50

L

2.50

2.50

2.50

M

5.17

7.27

9.47

O

4--.88

6--.88

6--.88

P

7.75

9.75

12.125

DD

5.00

6.50

7.50

FF

4.30

6.30

8.30

NN

9.44

11.44

13.81

Turns to open

14

20.5

26.5

Weight*

120

186

280

* All dimensions are in inches. All weights include accessories are in pounds and approximate.

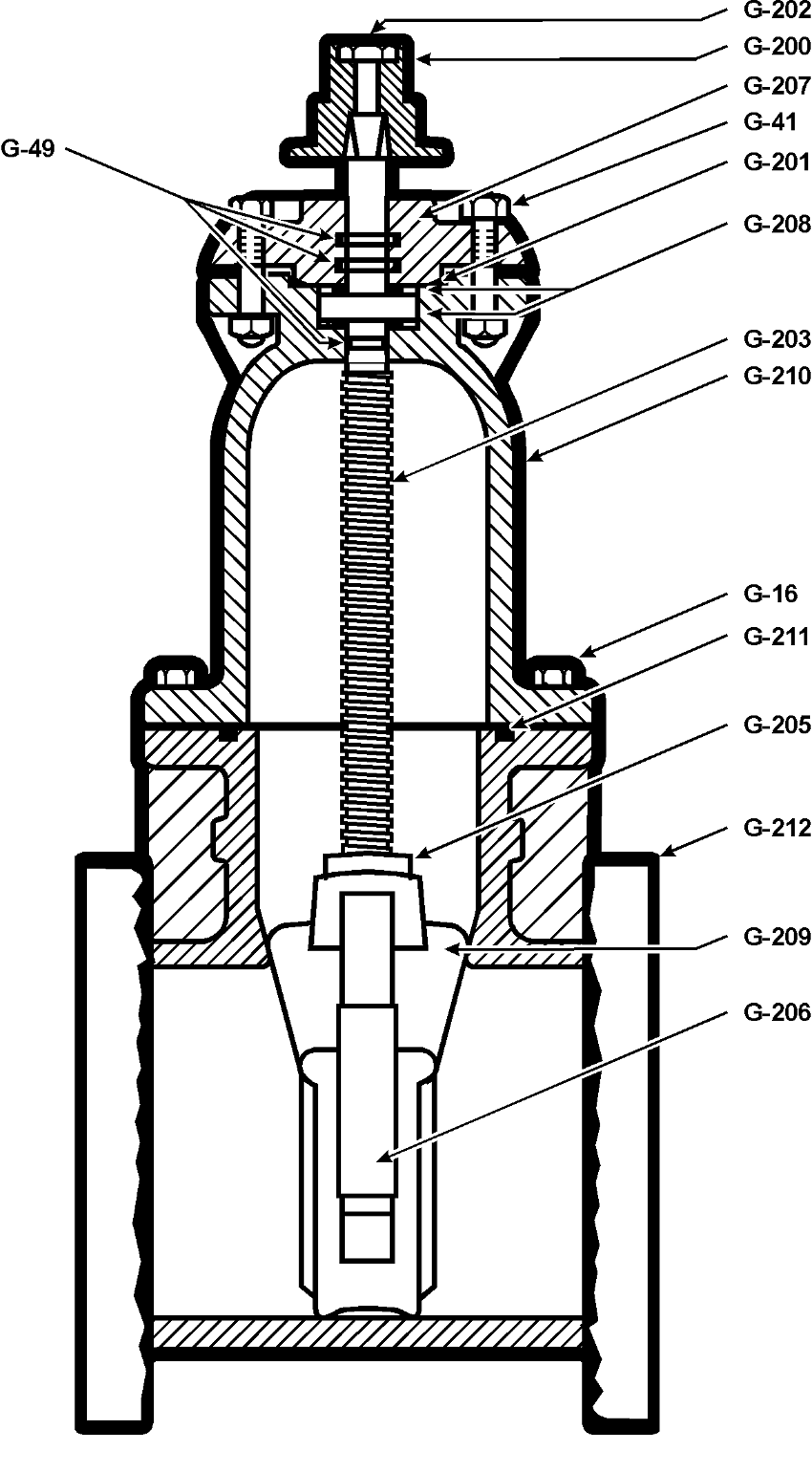

C-2360 Cut-In Valve MJ MJ Parts Drawing

Catalog Part Number

Description

Material

Material Standard

G-16

Bonnet bolts & nuts

316 Stainless Steel

ASTM F593 (bolt) ASTM F594 (nut)

G-41

Stuffing box bolt & nut

316 Stainless Steel

ASTM F593 (bolt) ASTM F594 (nut)

G-49

Stem O-rings (3)

Nitrile

ASTM D2000

G-200

Wrench nut cap screw

316 Stainless Steel

ASTM F593

G-201

Stuffing box seal

Nitrile

ASTM D2000

G-202

Wrench nut

Ductile Iron

ASTM A536 ▼

G-203

Stem

Bronze

ASTM B138

G-204

Handwheel (not shown)

Cast Iron+

ASTM A126 CL.B

G-205

Stem nut

Bronze

ASTM B584

G-206

Guide cap bearings

Acetal

-

G-207

Stuffing box with dirt seal

Ductile Iron

ASTM A536 ▼

G-208

Anti-friction washer (2)

Acetal

-

G-209

Wedge,
Rubber encapsulated

Ductile Iron

ASTM A536 ▼

G-210***

Bonnet

Ductile Iron

ASTM A536 ▼

G-211***

Bonnet O-ring

Nitrile

ASTM D2000

G-212***

Body

Ductile Iron

ASTM A536 ▼

* Fully encapsulated in molded rubber with no iron exposed
** Previous to 1999 these parts on 4"-8" valves were designed with a gasket instead of an O-ring and with additional bolts.
Confirm the type of seal when ordering a replacement gasket or O-ring.
+ Manufacturers option to change material to Ductile Iron ASTM A536
▼ Material strength ASTM A536 65-45 minimum
