773 Series

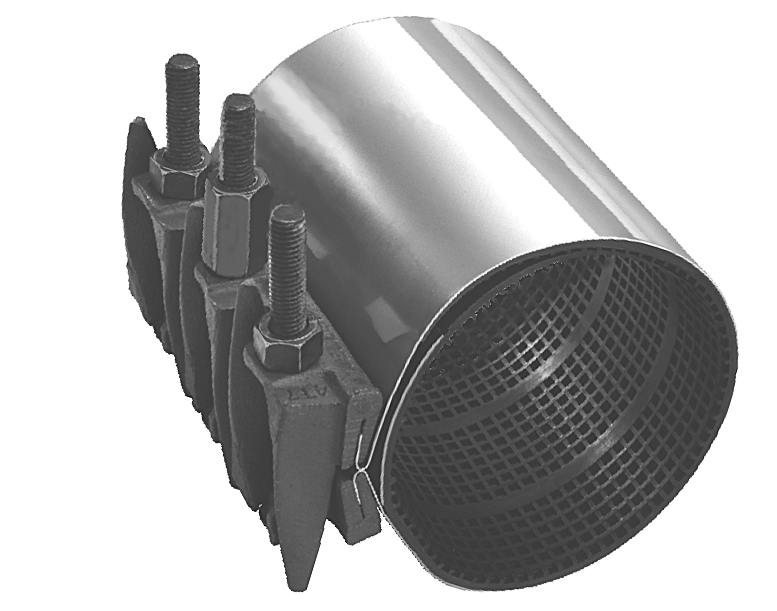

773 SeriesTMJoint Repair Clamp — for use on PE-160 PVC pipe solvent weld joints.

The 773 series clamp has a stepped gasket that fits over the solvent weld joint in PE-160 PVC pipe tostop leaksin the joint.

Catalog number

Nominal clamp/pipe size

Clamp length

773-06-0238

2"

6"

12"

773-07-0289

2-1/2"

7-1/2"

12"

773-07-0350

3"

7-1/2"

12"

773-07-0450

4"

7-1/2"

12"

773-07-0663

6"

7-1/2"

12"

733-07-0863

8"

7-1/2"

12"

Extra bolts and nuts for 773 series Mueller Single Section Full Seal Repair Clamps

Clampsize

Bolt size

Bolt part number

Nut part number

2"-3-1/2"

1/2"x4-1/2"

521009

521010

4"-12" (standard nut)

5/8"x6"

521008

195236

NOTE: 4" and larger 773 Series Clamps are provided with one starter bolt/nut per side as standard.

Stainless steel bolts

For optional 304 stainless steel bolts, washers and nuts, add “S-” prefix to clamp catalog number.

Example: S-773-06-863.

Deepsocket wrenchs

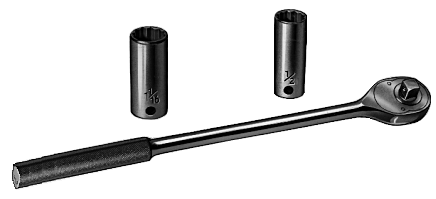

 Deep Socket Wrenches for 540-549

Specially designed for use with Mueller Full-Seal Repair Clamps. Long ratchet handle has thumb-tip reverse. Deep sockets (3-1/4") have double hex (12 pt.) and 1/2" square drive.

Part number

Description

515204

15-3/4" with reversible ratchet handle

520344

7/8" socket for 2" and3" clamps

515207

1-1/16" socket for 4" and larger clamps

519575

1/2"x3/4"adapter

Note: For O.D. not shown contact our Customer Service Center or your Mueller Sales Representative.
IMPORTANT:PIPE REPAIR CLAMP Shave demonstrated their capability to seal against water pressures commonly encountered in distribution systems. Smaller diameter clamps of a given design can seal against higher pressures than larger ones. In addition,the pressure that a clamp can contain depends up on the torque applied to the bolts, the uniformity of bolt tightening (when there is more than one bolt), as well as the type and extent of pipe damage, surface condition of the pipe, environmental conditions, and installation workmanship.
