511 - 519 Series Xtra-Range Servi-Seal Pipe Repair Clamps
511 - 519 Series Xtra-Range Servi-Seal Pipe Repair Clamps
511 - 519 Series Xtra-Range Servi-Seal Pipe Repair Clamps - with integral 3/4" through 2" IP/CC threaded service outlet - for 4" through 24" cast iron, ductile iron, steel pipe, A-C and PVC plastic pipe.
Standard Lengths: 6", 7-1/2", 9", 10", 12", 15", 18", 20", 24", 30"
Nominal Pipe Size |
Clamp size - number | ClampO.D.range* |
Cast Iron |
Ductile Iron |
Cast Iron O.D. PVC |
Steel*** |
A-C Rough Barrel | |||
Inches | Millimeters | |||||||||
Min. | Max | Min. | Max | |||||||
4" | 470 | 4.50 | 5.50 | 119.4 | 139.7 | 50-250, A, B, C, D | All | Class 150, 200 | - | Class 100**, 150, 200 |
6" | 662 | 6.62 | 7.42 | 168.1 | 188.5 | - | - | - | STD | - |
6" | 675 | 6.75 | 7.55 | 171.5 | 191.7 | 50-250, A, B, C, D | All | Class 150, 200 | - | Class 100**, 150, 200 |
8" | 862 | 8.62 | 9.42 | 218.9 | 293.3 | - | - | - | STD | - |
8" | 888 | 8.88 | 9.68 | 225.6 | 245.8 | 50-250, A, B, C, D | All | Class 150, 200 | - | Class 100**, 150, 200 |
10" | 1072 | 10.72 | 11.72 | 272.3 | 297.7 | - | - | - | STD | - |
10" | 1105 | 11.05 | 12.05 | 280.7 | 306.0 | 50-250, A, B, C, D | All | Class 150, 200 | 12" O.D. | Class 100**, 150, 200 |
12" | 1246 | 12.46 | 13.26 | 316.5 | 336.8 | - | - | - | STD | - |
12" | 1310 | 13.10 | 14.30 | 332.8 | 363.2 | 50-250, A, B, C, D | All | Class 150, 200 | 14" | Class 100**, 150, 200 |
14" | 1433 | 14.33 | 15.13 | 364.0 | 384.3 | - | - | - | - | - |
14" | 1510 | 15.10 | 15.90 | 383.6 | 403.8 | 50-250, A, B, C, D | All | - | - | Class 100** |
16" | 1590 | 15.90 | 16.70 | 403.9 | 424.1 | - | - | - | 16" | - |
16" | 1655 | 16.55 | 17.35 | 420.4 | 440.6 | - | - | - | - | 14" Class 150, 200 |
16" | 1720 | 17.20 | 18.00 | 436.9 | 457.2 | 50-250, A, B, C, D | All | - | - | Class 100** |
18" | 1760 | 17.60 | 18.40 | 447.1 | 467.3 | - | - | - | 18" | - |
18" | 1841 | 18.41 | 19.21 | 467.7 | 487.9 | - | - | - | - | 16" Class 150, 200 |
18" | 1922 | 19.22 | 20.02 | 488.2 | 508.5 | 50-250, A, B, C, D | All | - | - | - |
20" | 1990 | 19.90 | 20.70 | 505.5 | 525.7 | - | - | - | 20" | Class 100** |
20" | 2070 | 20.70 | 21.50 | 525.8 | 546.1 | - | - | - | - | 18" Class 150 |
20" | 2145 | 21.45 | 22.25 | 544.9 | 565.1 | 50-250, A, B, C, D | All | - | 22" | - |
20" | 2220 | 22.20 | 23.00 | 563.9 | 584.2 | - | - | - | - | 20" Class 100** 18" Class 150 |
20" | 2280 | 22.80 | 23.60 | 579.2 | 599.4 | - | - | - | - | - |
24" | 2344 | 23.44 | 24.24 | 595.4 | 615.6 | - | - | - | 24" | 20" Class 150 |
24" | 2420 | 24.20 | 25.00 | 614.7 | 635.0 | - | - | - | - | 20" Class 200 |
24" | 2490 | 24.90 | 25.70 | 632.5 | 652.7 | - | - | - | - | 20" Class 200 |
24" | 2566 | 25.66 | 26.46 | 651.8 | 672.0 | 50-250, A, B, C, D | - | - | 26" | - |
24" | 2672 | 26.72 | 27.52 | 678.7 | 699.0 | - | - | - | - | Class 100** |
24" | 2772 | 27.72 | 28.52 | 704.1 | 724.4 | - | - | - | 28" | Class 150 |
24" | 2863 | 28.63 | 29.83 | 727.3 | 757.6 | - | - | - | - | - |
24" | 2957 | 29.57 | 30.77 | 751.1 | 781.5 | - | - | - | 30" | Class 200 |
30" | 3122 | 31.22 | 32.42 | 793.0 | 823.5 | - | - | - | - | - |
36" | 3786 | 37.86 | 39.16 | 961.6 | 994.7 | - | - | - | - | - |
To specify the catalog number, provide the following information:
- Style number—511-519(see chart below)
- Length—Standard length available (inches): 6, 7-1/2 (list as “7”), 9, 12, 15, 18, 20, 24, 30
- Size number—from chart on page 15.14
- Catalog number prefix or sufix for optional features, if desired.
The catalog number for a Xtra-Range Servi-Seal Repair Clamp, with 3/4" IP thread tapped outlet, 12" clamp length for 6" cast iron pipe is 511-12-675.
Clamp style number | Clamp length | Clamp size number |
511 | 12 | 675 |
Clamp style number
Style number | Size/type of outlet tapping thread | Sizes available* |
511 | 3/4" IP | 4.70-37.86 |
512 | 3/4" CC | 4.70-37.86 |
513 | 1" IP | 4.70-37.86 |
514 | 1" CC | 4.70-37.86 |
515 | 1-1/4" IP | 4.70-37.86 |
516 | 1-1/2" CC | 4.70-37.86 |
517 | 1-1/2" IP | 4.70-37.86 |
518 | 2"CC | 4.70-37.86 |
519 | 2"IP | 4.70-37.86 |
Extra bolts and nuts for Mueller Xtra-Range Full Seal Repair Clamps
Clamp size | Bolt size | Boltpart number | Nutpart number |
4"-12" (standard bolt and nut) | 5/8"x6" | 521008 | 195236 |
4"-12" (starter bolt and nut) | 5/8x7" | 524308 | 526655 |
Stainless steel bolts
For optional 304 stainless steel bolts, washers and nuts, add “S-” prefix to clamp catalog number.
Example: S-511-12-675.

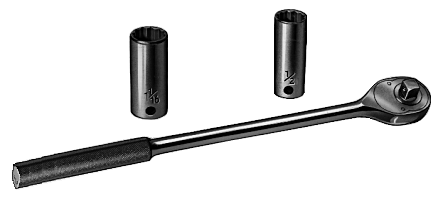

Deep socket wrenchs
Specially designed for use with Mueller Full-Seal Repair Clamps. Long ratchet handle has thumb- tip reverse. Deep sockets (3-1/4") have double hex (12 pt.) and 1/2" square drive.
Part number | Description |
515207 | 1-1/16" socket for 4" and larger clamps |
515204 | 15-3/4" with reversible ratchet handle |
519575 | 1/2"x3/4" adapter |
Extra bolts and nuts for Mueller Xtra-Range Full Seal Repair Clamps
Clamp size | Bolt size | Boltpart number | Nutpart number |
4"-12" (standard bolt and nut) | 5/8"x6" | 521008 | 195236 |
4"-12" (starter bolt and nut) | 5/8x7" | 524308 | 526655 |
Bonding device for cathodic protection
Metallic conductors are set in the gasket to provide contact between the band and the pipe surface and are available on all 500 series clamps. These conductors permit electrical current fl by establishing positive contact with pipe and band on each side of the pipe crack or break.
To specify optional bonding device for cathodic protection, add a prefi of “2” to catalog number.
Example: 2-511-12-675.
Metallic conductors are set in the gasket to provide contact between the band and the pipe surface and are available on all 500 series clamps. These conductors permit electrical current fl by establishing positive contact with pipe and band on each side of the pipe crack or break.
