510 Series Xtra-Range Full-Seal Pipe Repair Clamps

public://uploads/product/500_series_510_full-seal_pipe_repair_clamp_bw_img.png

510 Series Xtra-Range Full-Seal Pipe Repair Clamps

Mueller 510 Series Xtra-Range Full-Seal Pipe Repair Clamps - for 4" through 24" cast iron, ductile iron, steel pipe, A-C and PVC pipe.

510 Series Xtra-Range Full-Seal Pipe Repair Clamps - for 4"through 24" cast iron, ductile iron, steel pipe, A-C and PVC pipe.

Full Line Catalog

Standard Lengths: 6", 7-1/2", 9", 10", 12", 15", 18", 20", 24", 30"



Nominal

Pipe Size



Clamp size

- number

Clamp O.D. range*





Cast Iron



Ductile

Iron



Cast Iron

O.D. PVC





Steel***



A-C Rough

Barrel

Inches

Millimeters

Min.

Max

Min.

Max

4"

470

4.50

5.50

119.4

139.7

50-250, A, B, C, D

All

Class 150, 200

-

Class 100**, 150, 200

6"

662

6.62

7.42

168.1

188.5

-

-

-

STD

-

6"

675

6.75

7.55

171.5

191.7

50-250, A, B, C, D

All

Class 150, 200

-

Class 100**, 150, 200

8"

862

8.62

9.42

218.9

293.3

-

-

-

STD

-

8"

888

8.88

9.68

225.6

245.8

50-250, A, B, C, D

All

Class 150, 200

-

Class 100**, 150, 200

10"

1072

10.72

11.72

272.3

297.7

-

-

-

STD

-

10"

1105

11.05

12.05

280.7

306.0

50-250, A, B, C, D

All

Class 150, 200

12" O.D.

Class 100**, 150, 200

12"

1246

12.46

13.26

316.5

336.8

-

-

-

STD

-

12"

1310

13.10

14.30

332.8

363.2

50-250, A, B, C, D

All

Class 150, 200

14"

Class 100**, 150, 200

14"

1433

14.33

15.13

364.0

384.3

-

-

-

-

-

14"

1510

15.10

15.90

383.6

403.8

50-250, A, B, C, D

All

-

-

Class 100**

16"

1590

15.90

16.70

403.9

424.1

-

-

-

16"

-

16"

1655

16.55

17.35

420.4

440.6

-

-

-

-

14" Class 150, 200

16"

1720

17.20

18.00

436.9

457.2

50-250, A, B, C, D

All

-

-

Class 100**

18"

1760

17.60

18.40

447.1

467.3

-

-

-

18"

-

18"

1841

18.41

19.21

467.7

487.9

-

-

-

-

16" Class 150, 200

18"

1922

19.22

20.02

488.2

508.5

50-250, A, B, C, D

All

-

-

-

20"

1990

19.90

20.70

505.5

525.7

-

-

-

20"

Class 100**

20"

2070

20.70

21.50

525.8

546.1

-

-

-

-

18" Class 150

20"

2145

21.45

22.25

544.9

565.1

50-250, A, B, C, D

All

-

22"

-

20"

2220

22.20

23.00

563.9

584.2

-

-

-

-

20" Class 100**

18" Class 150

20"

2280

22.80

23.60

579.2

599.4

-

-

-

-

-

24"

2344

23.44

24.24

595.4

615.6

-

-

-

24"

20" Class 150

24"

2420

24.20

25.00

614.7

635.0

-

-

-

-

20" Class 200

24"

2490

24.90

25.70

632.5

652.7

-

-

-

-

20" Class 200

24"

2566

25.66

26.46

651.8

672.0

50-250, A, B, C, D

-

-

26"

-

24"

2672

26.72

27.52

678.7

699.0

-

-

-

-

Class 100**

24"

2772

27.72

28.52

704.1

724.4

-

-

-

28"

Class 150

24"

2863

28.63

29.83

727.3

757.6

-

-

-

-

-

24"

2957

29.57

30.77

751.1

781.5

-

-

-

30"

Class 200

30"

3122

31.22

32.42

793.0

823.5

-

-

-

-

-

36"

3786

37.86

39.16

961.6

994.7

-

-

-

-

-

*Verify pipe O.D. before selecting clamp size.
**CAUTION—O.D. of class 100 A-C pipe varies greatly. Measure pipe O.D. to assure proper clamp selection.
***Also fits PVC Plastic Pipe - ASTM D2241 SDR 17 and lower and ASTM D1785 schedule 80 and above.
Note: For O.D. not shown contact our Customer Service Center or your Mueller Sales Representative.

To specify the catalog number, provide the following information:

  1. Style number—510
  2. Length—Standard length available (inches): 6, 7-1/2 (list as “7”), 9, 12, 15, 18, 20, 24, 30
  3. Size number—from chart on page 15.12
  4. Catalog number prefix or sufix for optional features, if desired.

The catalog number for a 510 Xtra-Range Full-Seal Repair Clamp, 12" long for 6" cast iron pipe is 510-12-675.

Clamp style number

Clamp length

Clamp size number

510

12

675

Extra bolts and nuts for Mueller Xtra-Range Full Seal Repair Clamps

Clamp size

Bolt size

Bolt part number

Nut part number

4"-12" (standard bolt and nut)

5/8"x6"

521008

195236

4"-12" (starter bolt and nut)

5/8x7"

524308

526655

NOTE: 4" and larger 510 Series Clamps are provided with one starter bolt/nut per side as standard.

Stainless steel bolts

For optional 304 stainless steel bolts, washers and nuts, add “S-” prefix to clamp catalog number.

Example: S-510-12-675.

Deep socket wrenchs

Deep Socket Wrenches for 540-549



Specially designed for use with Mueller Full-Seal Repair Clamps. Long ratchet handle has thumb-tip reverse. Deep sockets (3-1/4") have double hex (12 pt.) and 1/2" square drive.

Part number

Description

515207

1-1/16" socket

515204

15-3/4" with reversible ratchet handle

519575

1/2"x3/4" adapter

Bonding device for cathodic protection

Metallic conductors are set in the gasket to provide contact between the band and the pipe surface and are available on all 500 series clamps. These conductors permit electrical current fl by establishing positive contact with pipe and band on each side of the pipe crack or break.

To specify optional bonding device for cathodic protection, add a prefi  of “2” to catalog number.

Example: 2-510-12-675.

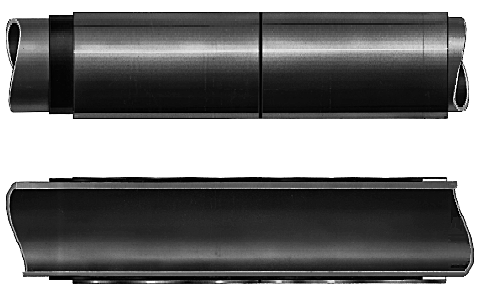

Add-on feature allows long lengthwise repairs

The gasket is cemented into the band in a 1" offset position. This allows overlapping the gasket with the band of another offset clamp when repairing a longer than usual area of pipe. This feature is not available on Servi-Seal style clamps.

To specify optional add-on feature for longer than usual repairs, add a prefi  of “1” to catalog number.

Example: 1-510-12-675.
