4"- 12" A-USP2 RESILIENT WEDGE GATE VALVES - SL x SL (FOR FIELD LOK™†† GASKETS).

Catalog number: A-USP2-61 Slip On ends (less Field Lok gaskets)

Specifications:

  • Sizes – 4", 6", 8", 12"
  • Meets or exceeds all applicable requirements of ANSI/AWWA C509, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
  • Slip-on ends with Field Lok gaskets are to be used on ductile iron pipe
  • Iron body with nominal 10 mils Pro-Gard® Fusion Bonded Epoxy Coated interior and exterior surfaces
  • Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard.
  • Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
  • Non-rising stem (NRS)
  • Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
  • 2" square wrench nut – open left or open right
  • 350 psig (1725 kPa/17 barg) maximum working pressure, 700 psig (3450 kPa/35 barg) static test pressure
  • UL Listed, FM Approved: 350 psig (1725 kPa/17 barg)
  • Designed for potable water applications
†Design and dimensions of the joint are manufactured under license of U.S. Pipe and Foundry Company.
††Field Lok is a trademark of U.S. Pipe and Foundry Company, used with permission.

Options*:

  • Position indicators
  • Stainless steel stem: Type 304, Type 316
  • Low zinc, silicon bronze ASTM B98-C66100/H02 stem
  • Handwheel
  • EPDM Disc and o-rings
*See Parts section below for more information on Resilient Wedge Gate Valve options.

Resources:

Full Line Catalog

Dimensions

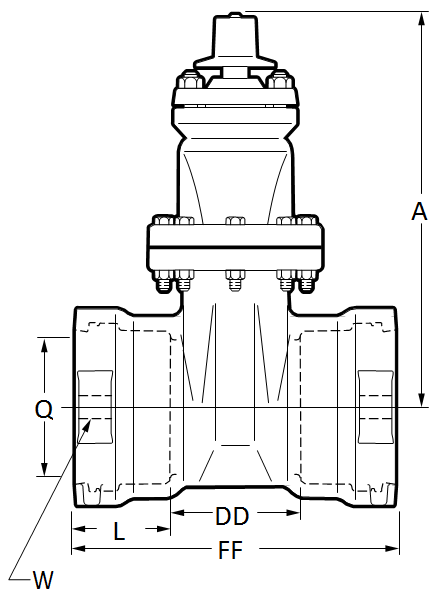

Nominal Size

4"

6"

8"

12"

A

14.19

18.00

21.50

28.62

Q (bore)

4.30

6.30

8.30

12.30

W (distance between strapping lug holes across face of valve ends)

8.62

10.62

13.12

18.12

FF

12.81

14.96

17.94

18.70

L

4.12

4.38

5.62

5.62

DD

4.57

6.2

6.7

7.46

Turns to open

14

20.5

26.5

38.5

Weight*

101

156

252

499
*All dimensions are in inches. All weights are in pounds and are approximate.
**Field Lok is a trademark of U.S. Pipe and Foundry Company, used with permission.

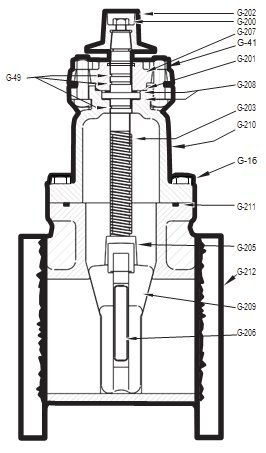

Catalog Part No. Description Material Material Standard
G-16 Bonnet Bolts & Nuts 316 Stainless Steel ASTM F593 (bolt) ASTM F594 (nut)
G-41 Stuffing Box Bolts & Nuts 316 Stainless Steel ASTM F593 (bolt) ASTM F594 (nut)
G-49 Stem O-rings (3) Nitrile ASTM D2000
G-200 Wrench Nut Cap Screw 316 Stainless Steel ASTM F593
G-201 Stuffing Box O-ring Nitrile ASTM D2000
G-202 Wrench Nut Ductile Iron ASTM A536 ▼
G-203 Stem Bronze ASTM B138
G-204 Hand Wheel (not shown) Cast Iron ASTM A126 CL.B
G-205 Stem Nut Bronze ASTM B584
G-206 Guide Cap Bearings Acetal -
G-207 Stuffing Box with dirt seal Ductile Iron Nitrile ASTM A536 ▼ ASTM D2000
G-208 Anti-friction Washers (2) Acetal -
G-209 Wedge, Rubber Encapsulation Ductile Iron* SBR ASTM A536 ▼ ASTM D2000
G-210 Bonnet Ductile Iron ASTM A536 ▼
G-211 Bonnet O-ring Nitrile ASTM D2000
G-212 Body Ductile Iron ASTM A536 ▼
*Fully encapsulated in molded rubber with no iron exposed
▼ Material strength ASTM A536 65-45 minimum
