Catalog numbers:
-
- A-USP1-20 Mechanical joint ends (with accessories unassembled)
- A-USP1-23 Mechanical joint ends (less accessories)
Specifications:
- Sizes – 14", 16", 18", 20", 24", 30", 36", 42", 48"
- Meets or exceeds all applicable requirements of ANSI/AWWA C515 Standard, UL 262 Listed (thru 24”), FM 1120/1130 Approved (thru 16”), and certified to ANSI/NSF 61 & 372
- Mechanical joint end complies with ANSI/AWWA C111 Standard.
- Ductile Iron body and bonnet with nominal 10 mils Pro-Gard® Fusion Bonded Epoxy Coated interior and exterior surfaces; 42" and 48" valves coated with HP Epoxy coating.
- Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard.
- Ductile Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron.
- Non-rising stem (NRS)
- Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
- 2" square wrench nut (optional bevel or spur gearing) – open left or open right. 30"-48" require a Spur Gear or Bevel Gear
- 250 psig (1725 kPa/17 barg) maximum working pressure, 500 psig (3400 kPa/34 barg) static test pressure
- 14" and 16" sizes – UL Listed, FM Approved: 250 psig (1725 kPa/17 barg)
- 18", 20" and 24" sizes – UL Listed: 175 psig (1200 kPa/12 barg); FM Approved: 250 psig (1725 kPa/17 barg)
- Designed for potable water applications
Options*:
- Position indicators
- Low zinc, silicon bronze ASTM B98-C66100/H02 stem: 14”-16”, ASTM B763-C99500: 18”- 48”
- Bypass 16" - 48" (2" on 16"-20"; 2.5" on 24"; 3" on 30"- 36", 4" on 42"-48")
- EPDM Disc and O-rings, 14”-16” optional, 18”-48” standard
- Handwheel
- Stainless Steel Stem Type 304, Type 316
- Spur or bevel geared actuator
Resources:
- Operating Manual
- Product Specifications
- Suggested Specifications
- Installation Preparation Check List
- Submittal Drawing 1: (U6956)
- Submittal Drawing 2: (U6702-E302)
- Submittal Drawing 3: (U7225)
- Submittal Drawing 4: (U7300)
- Submittal Drawing 5: (U7450)
- Submittal Drawing 6: (U7451)
- Submittal Drawing 7: 48” RWGV 250-PSI AWWA C515 - 7581
- Submittal Drawing 8: 42” RWGV 250-PSI AWWA C515 -7421
- Flyer
- Certification of Compliance: 14" - 24"
- Certification of Compliance: 30" - 54"
|

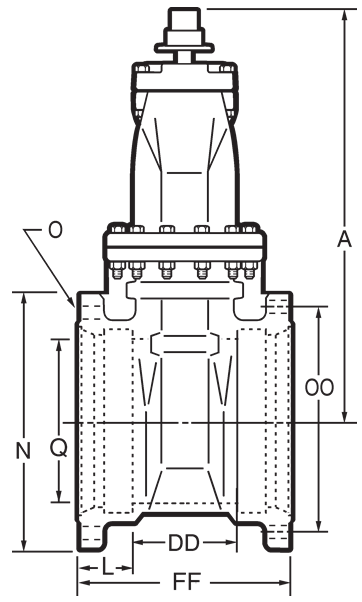

Dimension |
Nominal Size |
||||||||
|
14" |
16" |
18" |
20" |
24" |
30"† |
36"† |
42"† |
48"† |
|
|
A |
32.75 |
37.88 |
44.19 |
48.25 |
53.88 |
See A for Spur or Bevel Gear |
|||
|
L |
3.50 |
3.50 |
3.50 |
3.50 |
3.50 |
4.00 |
4.00 |
4.00 |
4.00 |
|
N |
20.62 |
22.56 |
24.88 |
27.01 |
31.88 |
39.53 |
46.41 |
53.53 |
60.41 |
|
O (number and size of holes for MJ) |
10--.88 |
12--.88 |
12--.88 |
14--.88 |
16--.88 |
20--1.125 |
24--1.125 |
28--1.38 |
32--1.38 |
|
Q (bore) |
14.38 |
16.00 |
18.38 |
20.38 |
24.38 |
30.38 |
36.38 |
42.38 |
48.38 |
|
OO (bolt circle diameter for MJ) |
18.75 |
21.00 |
23.25 |
25.50 |
30.00 |
36.88 |
43.75 |
50.62 |
57.50 |
|
R |
21.00 |
23.50 |
25.00 |
27.50 |
32.00 |
38.75 |
46.00 |
53.00 |
59.50 |
|
UU (bolt circle diameter) |
18.75 |
21.25 |
22.75 |
25.00 |
29.50 |
36.00 |
42.75 |
49.50 |
56.00 |
|
FF |
19.75 |
19.75 |
21.00 |
21.50 |
23.50 |
33.50 |
37.50 |
42.37 |
44.72 |
|
B (number and size of holes for FL) |
12--1.12 |
16--1.12 |
16--1.12 |
20--1.25 |
20--1.38 |
28--1.38 |
32--1.63 |
36--1.63 |
44--1.63 |
|
A - Spur Gear |
40.49 |
43.58 |
49.41 |
53.01 |
59.15 |
70.81 |
83.08 |
97.74 |
109.70 |
|
A - Bevel Gear** |
34.55 |
37.77 |
44.50 |
47.69 |
54.06 |
64.93 |
77.19 |
90.75 |
102.61 |
|
DD |
12.36 |
12.55 |
13.90 |
14.13 |
16.06 |
25.56 |
29.34 |
34.58 |
36.80 |
|
Turns to open (without gearing) |
43.5 |
49 |
57 |
63 |
75 |
- |
- |
- |
- |
|
Turns to open (Spur gearing) |
178 |
201 |
234 |
258 |
308 |
381 |
455 |
524 |
596 |
|
Turns to open (Bevel gearing) †† |
174 |
196 |
228 |
252 |
300 |
372 |
444 |
524 |
596 |
|
Weight* |
695 |
846 |
1274 |
1820 |
2438 |
6523 |
8400 |
13300 |
19700 |
**Center line of operating nut to center line of valve.
†Spur or Bevel Gear must be used with 30", 36", 42", 48" valves.
††Turns shown for Bevel gearing. All Sizes - 4:1 ratio.
|

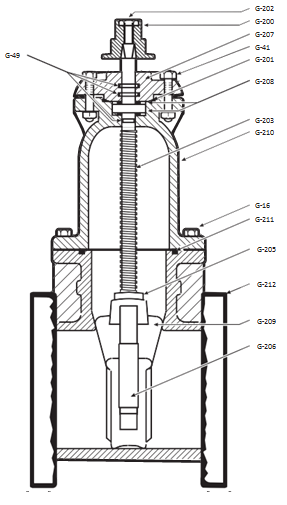

Catalog Part Number |
Description |
Material |
Material Standard |
|
G-16 |
Bonnet Bolts & Nuts |
316 Stainless steel |
ASTM F593 (bolt) ASTM F594 (nut) |
|
G-41 |
Stuffing Box Bolts & Nuts |
316 Stainless steel |
ASTM F593 (bolt) ASTM F594 (nut) |
|
G-49 |
Stem O-rings (3) ^ |
Nitrile |
ASTM D2000 |
|
G-200 |
Wrench Nut Cap Screw |
316 Stainless steel |
ASTM F593 |
|
G-201 |
Stuffing Box O-ring ^ |
Nitrile |
ASTM D2000 |
|
G-202 |
Wrench Nut |
Cast Iron+ |
ASTM A126 CL.B |
|
G-203 |
Stem |
Bronze |
ASTM B138** |
|
G-204 |
Hand Wheel (not shown) |
Cast Iron+ |
ASTM A126 CL.B |
|
G-205 |
Stem Nut |
Bronze |
ASTM B62 |
|
G-206 |
Guide Cap Bearings |
Acetal |
- |
|
G-207 |
Stuffing Box |
Ductile Iron++ |
ASTM A536 ▼ |
|
G-208 |
Anti-friction Washers (2) |
Acetal |
- |
|
G-209 |
Wedge, Rubber Encapsulation |
Ductile Iron* SBR ^ |
ASTM A536 ▼ ASTM D2000 |
|
G-210 |
Bonnet |
Ductile Iron |
ASTM A536 ▼ |
|
G-211 |
Bonnet O-ring ^ |
Nitrile |
ASTM D2000 |
|
G-212 |
Body |
Ductile Iron |
ASTM A536 ▼ |
**18" - 48" ASTM B584
*** 14”-16” valves are provided with 316 stainless steel fasteners as standard
^ 18" - 48" EPDM standard
++30”-48” are hot rolled steel ASTM A36
+ Manufacturers option to change material to Ductile iron ASTM A536
▼ Material strength ASTM A536 65-45 minimum
