U-20808
U-20808
Catalog Number:
- U-20808: Non-Adjustable Indicator Post
- UL Listed
- FM Approved
Extension Section (U-20815) Lengths:
- 1'-0", 1'-6", 2'-0", 2'-6", 3'-0", 3'-6", 4'-0", 4'-6", 5'-0"
Maximum Bury (Trench)
Size No. | Valve Size | |||||
4" | 6" | 8" | 10" | 12" | 14" | |
0 | 1' - 3" | 1' - 8" | 2' - 1" | 2' - 5" | 2' - 9" | 3' - 3" |
1 | 1' - 9" | 2' - 2" | 2' - 7" | 3' - 11" | 3' - 3" | 3' - 9" |
2 | 2' - 3" | 2' - 8" | 3' - 1" | 4' - 5" | 3' - 9" | 4' - 3" |

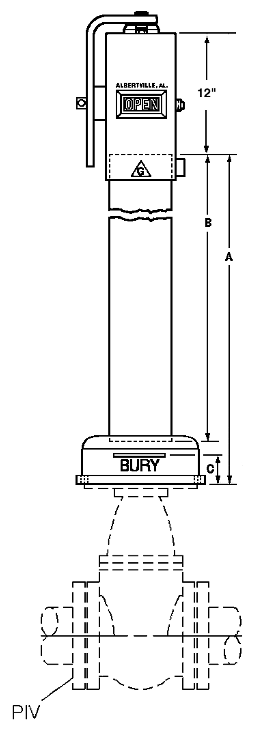

Barrel Dimensions
Size No. | A Dim | B Dim | C Dim |
0 | 26-5/8" | 24" | 2" |
1 | 32-5/8" | 30" | 8" |
2 | 38-5/8" | 36" | 14" |

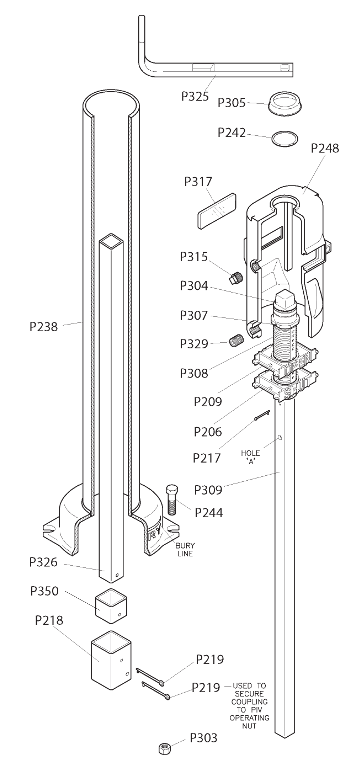

Catalog Part No. | Description | Material | Material Standard |
P206 | SHUT Target | Plastic | Nylon |
P209 | OPEN Target | Plastic | Nylon |
P217 | Cotter Pin (short) | Brass | ASTM B21 |
P218 | Coupling | Steel | ASTM A500 GR.B |
P219 | Cotter Pin (long) | Brass | ASTM B21 |
P238 | Bell and Barrel | Ductile Iron/ Steel | ASTM A536 GR.65-45-12 ASTM A500 GR.B |
P242 | Retaining Ring | Stainless Steel | AISI 302 |
P244 | Hex Bolt | Steel/zinc plated | ASTM A307 GR.A |
P248 | Post Head | Gray Iron | ASTM A126 CL.B |
P303 | Hex Nut | Steel/zinc plated | ASTM A563 GR.A |
P304 | Operating Nut | Ductile Iron | ASTM A536 GR.65- 45-12 |
P305 | Cap | Plastic | Polypropylene |
P307 | Spring pin | Stainless Steel | AISI 420 |
P308 | Threaded sleeve | Plastic | Nylon |
P309 | Upper stem | Steel | ASTM A513 |
P315 | Pipe plug - hex socket | Steel |
|
P317 | Window | Plexiglass |
|
P325 | Wrench | Ductile Iron | ASTM A536 GR.65- 45-12 |
P326 | Lower Stem | Steel | ASTM A500 GR.B |
P329 | Socket head set screw | Steel | ANSI B18.3 |
P350 | Coupling insert | Steel | ASTM A500 GR.B |
