U-20806: Adjustable Type Indicator Post
- UL Listed
- FM Approved
Extension Section (U-20815) Lengths:
- 1' -0", 1'-6", 2'-0", 2'-6", 3'-0", 3'-6", 4'-0", 4'-6", 5'-0"

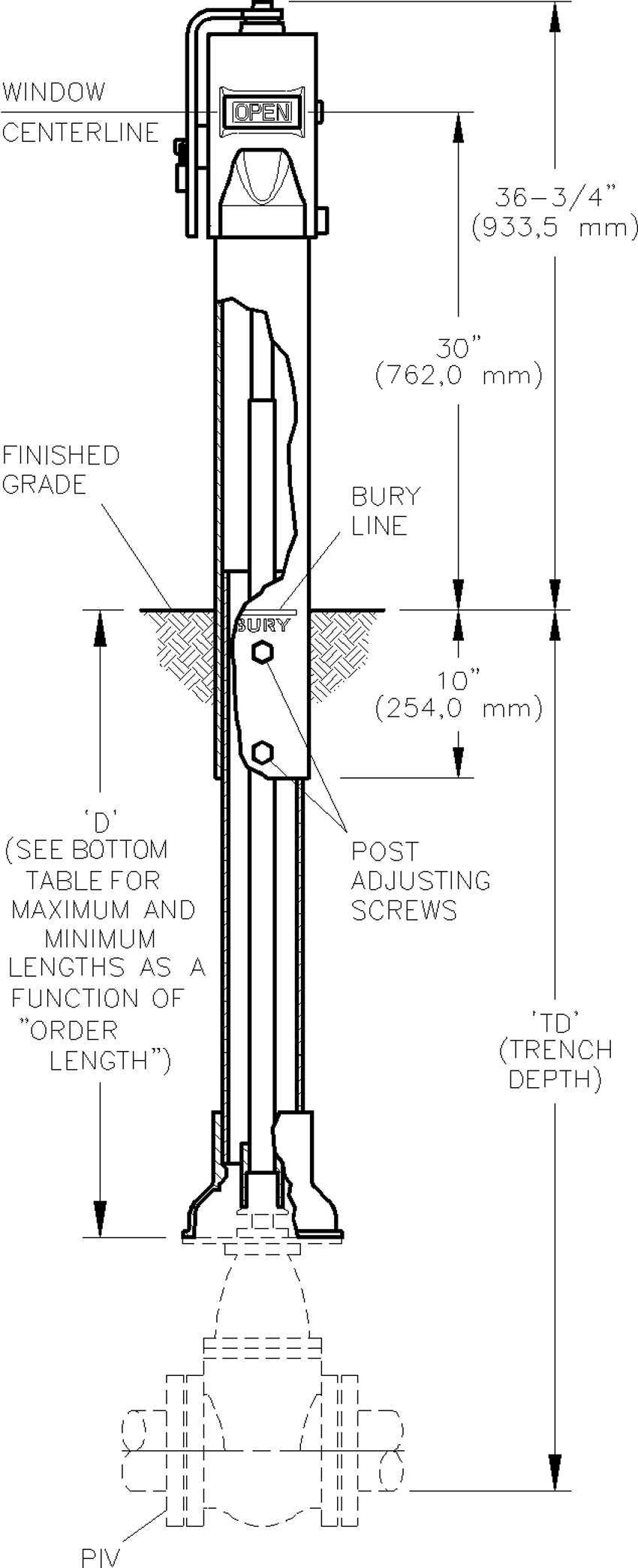

NOMINAL TRENCH DEPTHS FOR MUELLER RESILIENT WEDGE POST INDICATOR VALVES
| Valve Size | "ORDER LENGTH" | |||||||||||
| A | B | C | D | E | F | |||||||
| Min. | Max | Min. | Max | Min. | Max | Min. | Max | Min. | Max | Min. | Max | |
4" | 2' - 7" | 4' - 5" | 4' - 1" | 6' - 2" | 5' - 10" | 7' - 11" | 7' - 6" | 9' - 8" | 9' - 4" | 11' - 5" | 11' - 1" | 13' - 2" |
6" | 3' - 0" | 4' - 10" | 4' - 6" | 6' - 7" | 6' - 3" | 8' - 4" | 8' - 0" | 10' - 1" | 9' - 9" | 11' - 10" | 11' - 6" | 13' - 7" |
8" | 3' - 4" | 5' - 2" | 4' - 11" | 6' - 11" | 6' - 8" | 8' - 8" | 8' - 5" | 10' - 5" | 10' - 2" | 12' - 2" | 11' - 11" | 13' - 11" |
10" | 3' - 8" | 5' - 6" | 5' - 3" | 7' - 3" | 6' - 10" | 9' - 0" | 8' - 9" | 10' - 9" | 10' - 6" | 12' - 6" | 12' - 3" | 14' - 3" |
12" | 4' - 0" | 5' - 10" | 5' - 7" | 7' - 7" | 7' - 4" | 9' - 4" | 9' - 1" | 11' - 1" | 10' - 10" | 12' - 10" | 12' - 7" | 14' - 7" |
14" | 4' - 6" | 6' - 4" | 6' - 1" | 8' - 1" | 7' - 10" | 9' - 10" | 9' - 7" | 11' - 7" | 11' - 4" | 13' - 4" | 13' - 1" | 15' - 1" |
D DIMENSION ADJUSTMENT RANGE
| "ORDER LENGTH" | |||||
| A | B | C | D | E | F | |
Min. | 17.25" | 36.00" | 57.00" | 78.00" | 99.00" | 120.00" |
Max. | 39.25" | 60.25" | 81.25" | 102.25" | 123.25" | 144.25" |
Catalog Part No. | Description | Material | Material Standard |
P206 | SHUT Target | Plastic | Nylon |
P209 | OPEN Target | Plastic | Nylon |
P217 | Cotter Pin (short) | Brass | ASTM B21 |
P218 | Coupling | Steel | ASTM A500 GR.B |
P219 | Cotter Pin (long) | Brass | ASTM B21 |
P242 | Retaining ring | Stainless Steel | AISI 302 |
P244 | Hex Bolt | Steel/zinc plated | ASTM A307 GR.A |
P248 | Post Head | Gray Iron | ASTM A126 CL.B |
P273 | Bell | Gray Iron | ASTM A126 CL.B |
P303 | Hex Nut | Steel/zinc plated | ASTM A563 GR.A |
P304 | Operating Nut | Ductile Iron | ASTM A536 GR.65- 45-12 |
P305 | Cap | Plastic | Polypropylene |
P307 | Spring pin | Stainless Steel | AISI 420 |
P308 | Threaded sleeve | Plastic | Nylon |
P309 | Upper stem | Steel | ASTM A513 |
P315 | Pipe plug - hex socket | Steel |
|
P317 | Window | Plexiglass |
|
P322 | Hex head screw | Steel/zinc plated | ASTM A307 GR.A |
P323 | Lower Barrel | PVC | DR14 UL Listed |
P324 | Upper Barrel | Steel | ASTM A53 GR.B |
P325 | Wrench | Ductile Iron | ASTM A536 GR.65- 45-12 |
P326 | Lower Stem | Steel | ASTM A500 GR.B |
P329 | Socket head set screw | Steel | ANSI B18.3 |
P350 | Coupling Insert | Steel | ASTM A500 GR.B |
