4-12 Inch I-USP1 Tapping Valve MJxFL

4-12 Inch I-USP1 Tapping Valve MJxFL

I-USP1-16
I-USP1-19

Specifications:

  • Flanged x Mechanical Joint Ends
  • Indicator Post Style Stuffing box
  • 2" Square Operating Nut
  • With Mechanical Joint accessories+
  • 4", 6", 8", 10" and 12" sizes
  • UL 262 listed and FM 120/1130 approved specifications and certified to ANSI/NSF 61 & 372
  • Ductile iron body and bonnet with nominal 10 mils Mueller® Pro-Gard™ Fusion Bonded Epoxy Coated interior & exterior surfaces
  • Non-rising stem (NRS)
  • Rubber encapsulated iron wedge
  • 350 psig (2400 kPa/24 barg) maximum working pressure, 700 psig (2758 kPa) static test
  • Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
  • Epoxy coating meets or exceeds ANSI/AWWA C550 and complies with NSF-61 & 372
  • Flanged end drilling complies with ANSI B16.1 class 125 and B16.42 class 150

Options:

  • Position indicators
  • Stainless steel stem: TYPE 304 and 316
  • EPDM disc and o-rings
  • Low zinc, silicon bronze ASTM B98-C66100/H02 stem

Submittal Drawing          Full Line Catalog

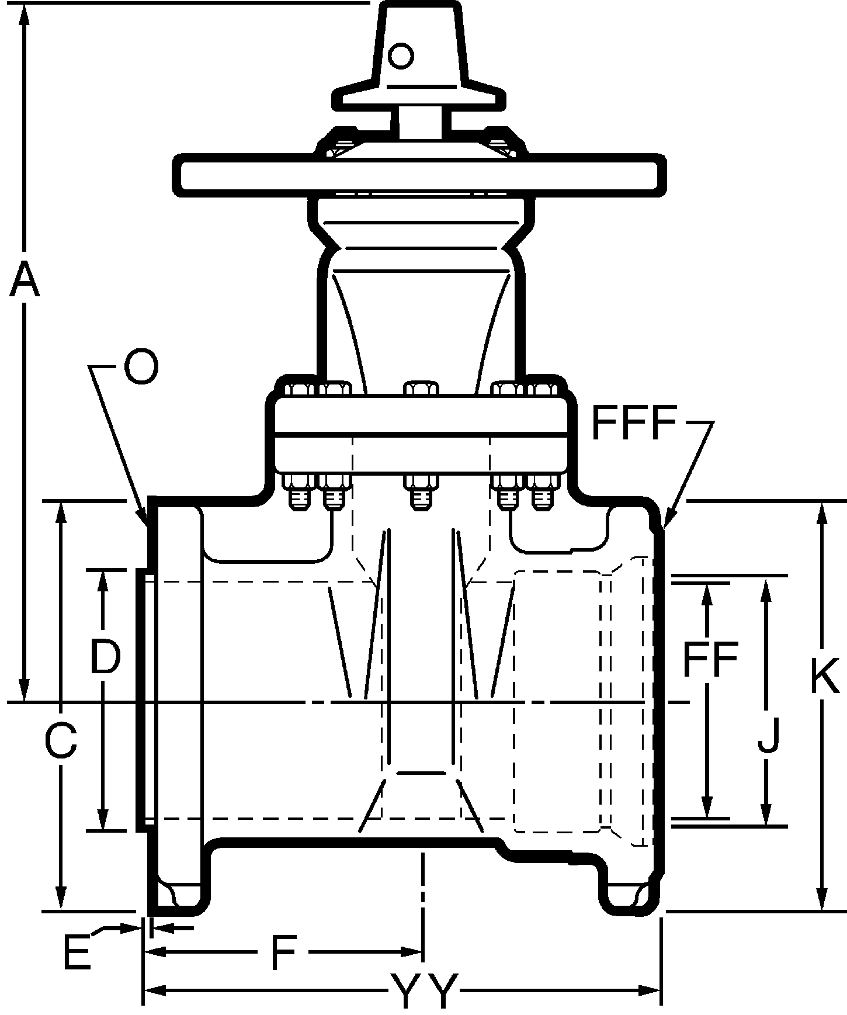

I-USP0 16 Dimensions Drawing



  Dimension*

Size

4"

6"

8"

10"

12"

 A

14.19"

18.00"

21.50"

25.50"

28.62"

 C

9.00"

11.00"

13.50"

16.00"

19.00"

 D

5.00"

7.00"

9.00"

11.00"

13.00"

 E

0.18"

0.25"

0.25"

0.25"

0.25"

 F

6.24"

6.75"

7.50"

8.44"

7.38"

 J

4.80"

6.90"

9.05"

11.10"

13.20"

 K

9.12"

11.12"

13.38"

15.68"

17.94"

 O (number and size of holes for FL)

8--.75"

8--.88"

8--.88"

12--1.00"

12--1.00"

 FF

4.30"

6.30"

8.30"

10.30"

12.30"

 YY

11.91"

13.00"

14.75"

15.80"

15.58"

 FFF (number and size of holes for MJ)

4--.88"

6--.88"

6--.88"

8--.88"

8--.88"

 Turns to open

14

20.5

26.5

33

38.5

 Weight (lbs.)*

117

172

265

399

529

NOTE: Flanged ends have 125 lb. American Standard End Flange Drilling, ANSI B16.1.
*All dimensions are in inches. All weights are in approximate pounds.

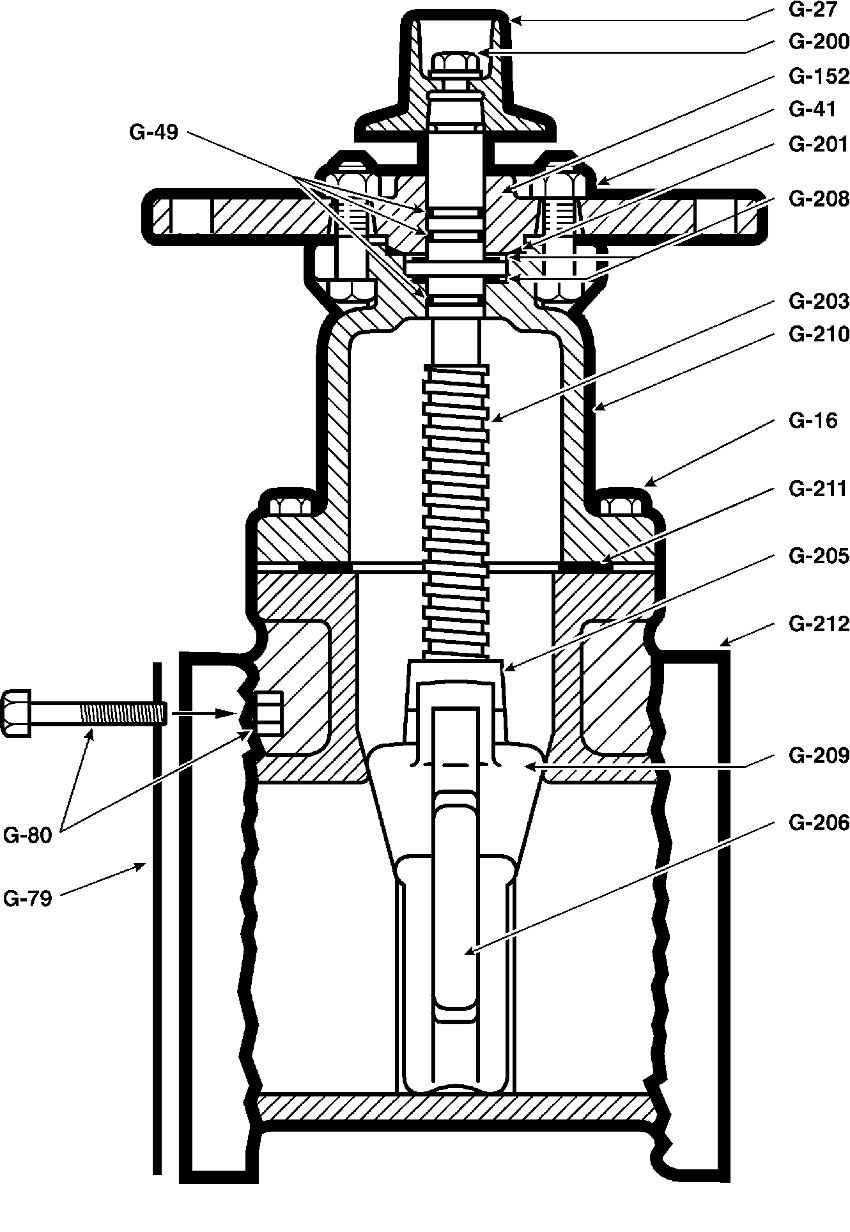

I-USP0 16 Parts Drawing

Catalog Part No.

Description

Material

Material Standard

G-16

Bonnet Bolts & Nuts

316 Stainless Steel

ASTM F593 (bolt)/ASTM F594 (nut)

G-27

Wrench Nut

Ductile Iron

ASTM A536 ▼

G-41

Stuffing Box Bolts & Nuts

316 Stainless Steel

ASTM F593 (bolt)/ASTM F594 (nut)

G-49

Stem O-rings (3)

Nitrile

ASTM D2000

G-152

Stuffing Box

Ductile Iron

ASTM A536 ▼

G-200

Wrench Nut Cap Screw

316 Stainless Steel

ASTM F593

G-201

Stuffing Box Seal

Nitrile

ASTM D2000

G-203

Stem

Bronze

ASTM B138

G-205

Stem Nut

Bronze

ASTM B584 Alloy C89833

G-206

Guide Cap Bearings

Acetal

 -

G-208

Anti-friction Washers (2)

Acetal

 -

G-209

Wedge/ Rubber Encapsulated

Ductile Iron**

ASTM A536 ▼

G-210

Bonnet

Ductile Iron

ASTM A536 ▼

G-211

Bonnet Gasket

Nitrile

ASTM D2000

G-212

Body

Ductile Iron

ASTM A536 ▼

NOTE: Flanged ends have 125 lb. American Standard End Flange Drilling, ANSI B16.1.
+ MJ accessories are included and palletized separately from valves.
** Fully encapsulated in molded rubber with no iron exposed.
▼ Material strength ASTM A536 65-45 minimum.
